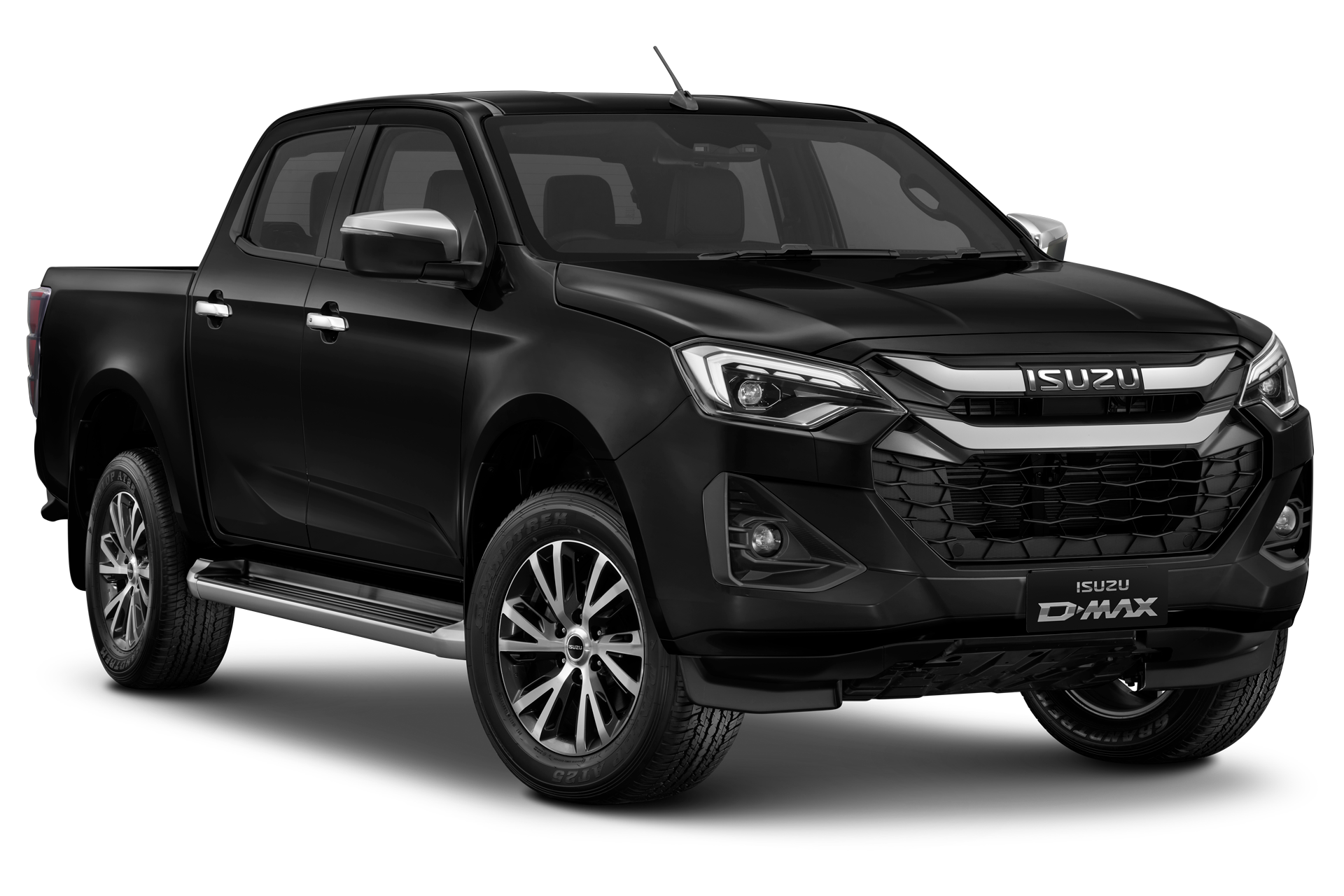

D-Max DL40

ENHANCED CAPABILITY

From £38,995

Book a test drive

Superb features. Fitted as Standard in every Isuzu D-Max DL40

Available from £38,995

Choose the DL40 for hard graft with uncompromising capability and style.

Available with manual or automatic transmission, it is a capable and reliable workhorse that comes with a smart interior and advanced safety features as well as keyless entry, distinctive two-tone 18” alloy wheels and stylish silver yet hardwearing side steps.

Isuzu D-Max DL40 Tech & Specs

Exterior

	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Body Coloured Front Bumper
Automatic Headlamp with On-Off Automatic High Beam
Follow Me Home Headlamp
Rear Fog Lamp
Door Mirrors with Side Turn Lamp
Center High Mount Stop Lamp
Body Coloured Rear Bumper
Cargo Box with Front & Rear Inner Hooks (4x)
Led Headlamps
Headlamp With Titanium Grey Accent
Led Daytime Running Lights
Led Rear Combination Lamp
Led Front Fog Lamp
New Design Titanium Grey Radiator Grille
Power Folding, Heated, Chrome Plated Door Mirrors with Side Turn Lamp and Blind Spot Monitor
Powered Windows With Jam Protection1
Rear Flipper Window	-	-

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Engine Type	RZ4F	RZ4F	RZ4F
Arrangement Cylinders	4, In line	4, In line	4, In line
Firing Order	1-3-4-2	1-3-4-2	1-3-4-2
Bore mm	83	83	83
Stroke mm	100	100	100
Compression	15.9	15.9	15.9
Engine Capacity cm3	2164	2164	2164
Idle Speed	750+/- 25	750+/- 25	750+/- 25
Fuel Tank Capacity Litres (Gal)	76 (16.72)	76 (16.72)	76 (16.72)
AdBlue tank capacity litres	14.5 (3.19)	14.5 (3.19)

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Basic Retail	£38,880.00	£37,880.00	£39,880.00
Delivery to Dealer Premises & No. Plates (Ex VAT)	£700.00	£700.00	£700.00
12 Months RFL (VAT Exempt)	£360.00	£360.00	£360.00
DVLA First Registration Fee (VAT Exempt)	£55.00	£55.00	£55.00
VAT 20%	£7,916.00	£7,716.00	£8,116.00
Total On The Road Price (Inc. VAT)	£47,911.00	£46,711.00	£49,111.00
CVOTR* (Excl. VAT)	£39,995.00	£38,995.00	£40,995.00

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
1	4.903	4.508	4.903
2	3.120	2.449	3.120
3	2.166	1.174	2.166
4	1.597	1	1.597
5	1.312	0.736	1.312
6	1	0.578	1
Reverse	4.050	4.193	4.050
Final Drive	3.583	3.909	3.583
7	0.776	N/A	0.776
8	0.651	N/A	0.651

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Net Power PS @ rpm	163.15 @3600	163.15 @3600	163.15 @3600
Torque Nm @ rpm	400 @ 2000 - 2500	400 @ 2000 - 2500	400 @ 2000 - 2500
Maximum Speed (mph)	112	112	112
Acceleration (0-62mph) sec	12	12	12
Net power KW	120@3600	120@3600	120@3600
Torque lb f ft	295 @ 2000 - 2500	295 @ 2000 - 2500	295 @ 2000 - 2500

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Approach Angle (deg.)	30.5	30.5	30.5
Length mm	5280	5280	5280
Width mm	1870	1870	1870
Height mm	1790	1790	1790
Front Overhang mm	905	905	905
Rear Overhang mm	1250	1250	1250
Wheelbase mm	3125	3125	3125
Track (Front & Rear) mm	1570	1570	1570
Ground Clearance mm (Rear Axle)	240	240	240
Departure Angle (deg.)	24.2	24.2	24.2
Ramp Angle (deg.)	22.9	22.9	22.9
Internal Bed Length	1675	1675	1675

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Kerb Weight kg	2010	2015	2045
Gross Vehicle Weight kg	3100	3100	3100
Payload*2 kg	1090	1085	1055
Max Front Axle kg	1450	1450	1450
Max Rear Axle kg	1910	1910	1910
Trailer Weight Braked kg	3500	3500	3500
Trailer Weight Unbraked kg	750	750	750
Nose Weight kg	245	245	245
Gross Train Weight kg	6000	6000	6000

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Tyres	265/60R18	265/60R18	265/60R18
Wheels	Alloy (18 x 7.5J)	Alloy (18 x 7.5J)	Alloy (18 x 7.5J)

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Basic Retail	£600	£600	£600
VAT	£120	£120	£120
Total On The Road Price	£720	£720	£720

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Insurance Group	40A	40A	40A

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Low	11.9	11.2	12.0
Mid	8.2	8.4	8.2
High	7.4	7.3	7.4
Extra-High	8.9	9.0	9.0
Combined	8.7	8.6	8.7

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Low	311	294	313
Mid	214	221	214
High	194	191	195
Extra-High	234	235	235
Combined	228	226	229

Privacy • Cookies • Terms • Jobs

Startin Tractors Limited is authorised and regulated by the Finance Conduct Authority (FCA No 669694) to act as a credit broker, not a lender for the introduction to a limited number of lenders as detailed in our status disclosure document.

Registered in England & Wales: 1381670

Registered Office: The Grange, Croxall, Lichfield, Staffs WS13 8RB

Data Protection No: Z5726988

Website design and development by tame.

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Tyres: 265/60R18 110H : A/T Pattern AT31 [Dunlop]
Tyre Pressure Monitoring Sensor (TPMS)
18” Diamond Cut Grey Alloy Wheels: 18"X7.5J-33 (Spoke Type)
Full Spare Wheel

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Heated Front Seats
Front Seatback Map Pockets
Height Adjustable Front Headrests
Body Coloured Rear Bumper
Dashboard Upper Centre Storage with Lid
Utility Box On Glove Box
2 Cup Holders
Centre Storage Compartment with Lid
Reading Lamp
Sun Glasses Holder
Roof Lamp
Front Reading Lamp
Rear Flipper Window	-		-
Black Leather Steering Wheel with Med-Grey Stitching & Satin Chrome Plating
2x Key Fobs with Pess (Passive Entry Smart System), Immobilizer & Emergency Key
Black Side Step with Ornament (Silver)
Chrome Plated Door Mirrors Power Adjust, Power Folding, Side Turn Lamp, Heated, with Blind Spot Indicator
Powered Windows with Jam Protection
8-Way Adjustable Driver’s Seat (Power) / Passenger 4-Way (Manual)
Driver’s Seat Lumbar Support (Power)
Front Lhs Seat with Convenience Hook
Rear Jump Seat with Folding Cushion		-	-
0/40 Folding Seat Back with Rear Centre Arm Rest & 2 Cup Holders	-
Height Adjustable Rear Adjustable Headrests	-
New Black Leather with Medium Grey Stitching
Carpet floor trim
Foot Rest On Driver Side

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
7" Driver Instrument Cluster Colour Display
AM, FM & DAB Radio
12V Socket at Front
8" Centre Display Audio, with Android Auto™ / Apple Carplay™, with WiFi & Bluetooth®
Rear USB C Port	-
6 Speakers - Front, Rear Door and Tweeter	-
6 Speakers - Front Door, Tweeter & Roof		-	-

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Anti-Glare Inside Rear View Mirror with Day & Night Switch
Child Lock at Rear Door	-
Grab Handles at Front - Folding Type	-
Grab Handles at Rear - Folding Type with 2 Coat Hooks	-
Driver Sun Visor with Card Holder
Auto Wiper with Rain Sensor System
Rear Window Defogger
Grab Handles at Front - Fixed Type		-	-
Separated Coat Hooks		-	-
Driver & Passenger Sun Visor with Vanity Mirror
Keyless Entry & Start with Proximity Locking & Unlocking

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
Front & Rear Parking Sensors
AEB (Autonomous Emergency Brake)
FCW (Forward Collision Warning)
BOA (Brake Over Ride Accelerator)
Pedal Misapplication Mitigation (Auto Transmission Only)		-
Radar Function (Blind Spot Monitor, Rear Cross Traffic Alert/Brake), with Auto Off when Towing (Option with Trailer Wiring)
Lane Support System (Lane Departure Warning / Lane Departure Prevention / Emergency Lane Keeping / Lane Keep Assist System / Attention Assist)
Intelligent Adaptive Cruise Control (Iacc)
Driver Monitoring
Ess (Emergency Stop Signal)
Digital Surround View Camera
Speed Assistance System (Manual Speed Limiter, Traffic Sign Recognition, Intelligent Speed Limiter)

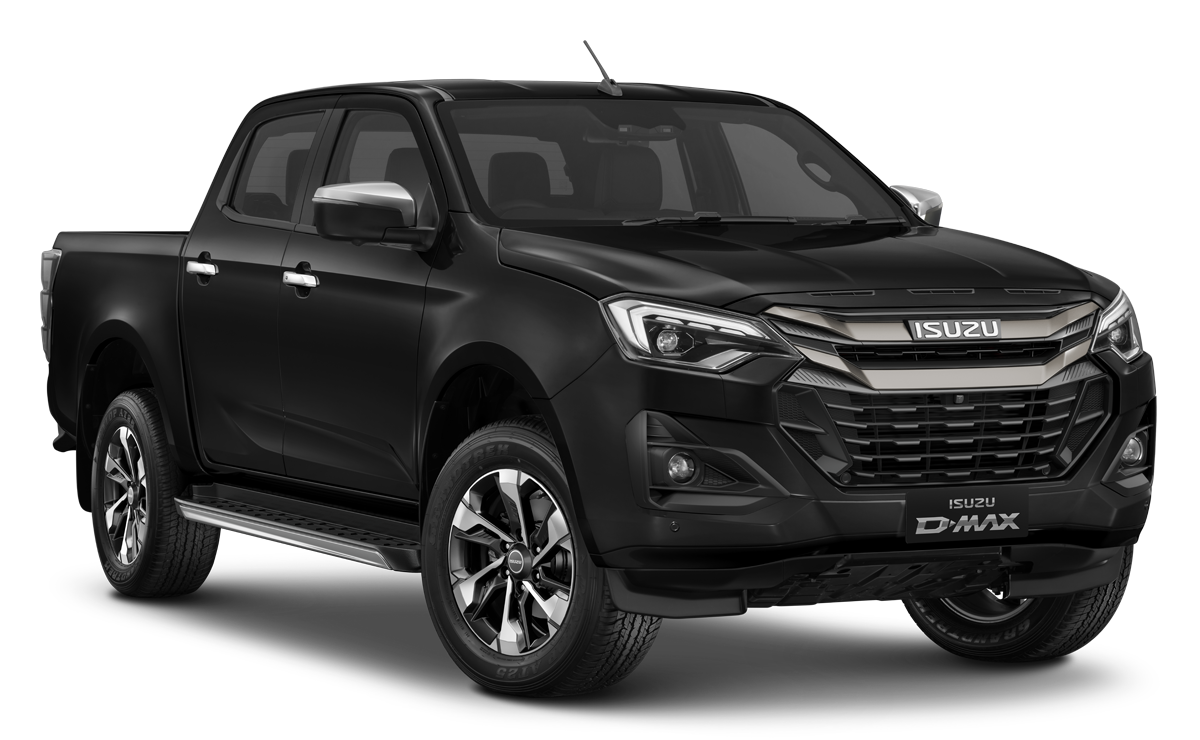

D-Max DL40

Superb features. Fitted as Standard in every Isuzu D-Max DL40

Available from £38,995

Choose the DL40 for hard graft with uncompromising capability and style.

Isuzu D-Max DL40 Tech & Specs

Categories

Exterior

Engine

Prices

Wheels

Interior

Entertainment

Comfort & Convenience

Climate Control

Advanced Driver Assist Systems*3

Safety & Security

Gear Ratios

Performance

Dimensions

Weights

Wheels & Tyres

Special Paint Finishes

Insurance Groups

Fuel Consumption WLTP (l/100km)*1

CO2 Emissions g/km

	4x4 Extended Cab (Auto)	4x4 Double Cab (Manual)	4x4 Double Cab (Auto)
8 x Airbags
Front Passenger Airbag Switch-Off
Front Seatbelts (3 Points) with Pre-Tensioner
Rear Outer Seats Seatbelts (3 Points) with Pre-Tensioner	-
Rear Middle Seat Seatbelt (3 Points)	-
Front Seats Seatbelt Unfastened Reminder
Rear Seats Seatbelt Unfastened Reminder	-
Front Passenger Seat with Occupant Detection Sensor
Rear Seats With Occupant Detection Sensor	-
Child Seat Isofix & Top Tether (Rear Outer Seats)	-
Emergency Call (ECALL)
Anti-Theft System with Alarm, Dead Lock, Immobiliser
Key Left in Cabin Audible Warning
Remote Key Auto Re-Lock
Auto Release Door Lock After Crash (When Airbag Deploy)
Front Brake Power Disc : 17"
Rear Brake Power Drum : 15"
Electronic Stability Control (ESC) With Hill Start Assist (HSA) / Traction Control / TSC & Rough Terrain Mode & Control Switch
HDC (Hill Descent Control) with Switch
Multi Collision Brake (MCB)
ABS with EBD / Brake Assist
